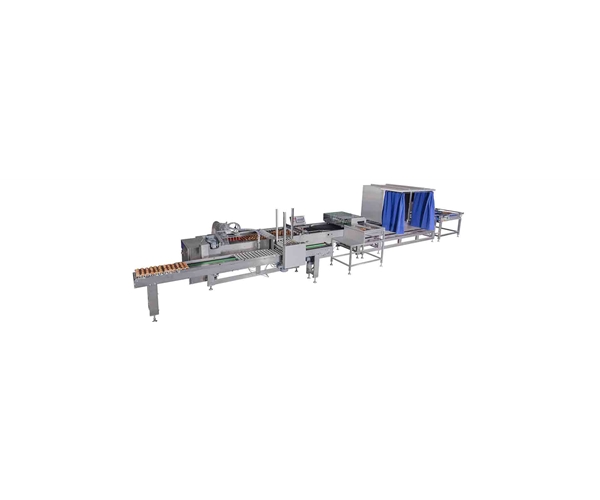

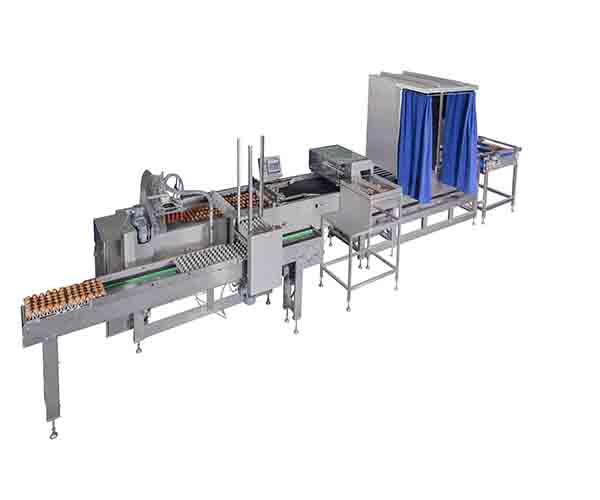

Name：Egg grading system
Details
Full column light inspection
The eggs are transported and rotated by the conveyor belt to achieve an orderly arrangement.
Using special light source and mechanical structure, the egg is transmitted,
Substandard eggs such as broken, cracked and impurities are checked;
Electronic grading
A fully automatic weight grading system with an outlet roller conveyor,
The grading system automatically divides the eggs into 3 levels according to different weights according to the needs of customers,
And transported to the corresponding outlet: extra small eggs and extra large eggs are transported to the manual collection table, and the specified gram weight eggs are transported to the automatic loading platform.
Adjust the head
The eggs are sized and adjusted by a flexible device during inlet transfer,
Unified big head facing up, the accuracy rate can reach 99.8%;
Egg loading machine
Using a set of automatic control system, the eggs of different grades are automatically loaded into the specified specification hatching tray;
